Home > Products > Wood Working Machine > 2-2.5ton/hour Wood pellet machine/sawdust pellet machine

2-2.5ton/hour Wood pellet machine/sawdust pellet machine

  • 2-2.5ton/hour Wood pellet machine/sawdust pellet machine
  • 2-2.5ton/hour Wood pellet machine/sawdust pellet machine
  • 2-2.5ton/hour Wood pellet machine/sawdust pellet machine
  • 2-2.5ton/hour Wood pellet machine/sawdust pellet machine

2-2.5ton/hour Wood pellet machine/sawdust pellet machine

    Unit Price: 18500~35000 USD
    Min. Order: 1 Set/Sets
    Packaging: 1-plastic film to package the wood pellet machine 2-Loading into container. 3-Fix the machine into container by steel wires or steel ropes 4-we also can make special packing based on customer's demand
    Productivity: 2-3T/H
    Brand: LONGZE
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 1000 Set/Sets per Month
    Certificate: CE ISO SGS
    HS Code: 847930
    Port: QINGDAO

Basic Info

Model No.: XGJ560

Product Description

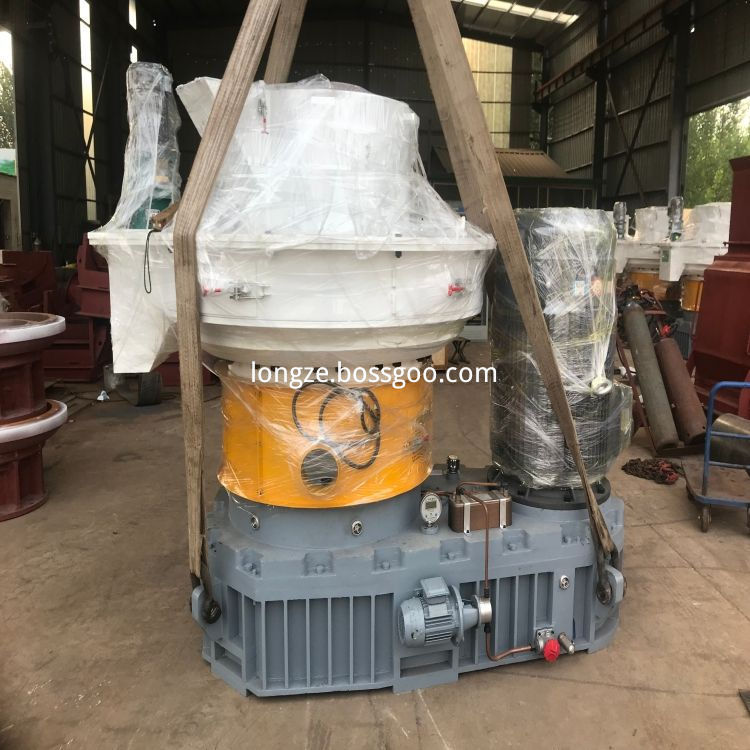

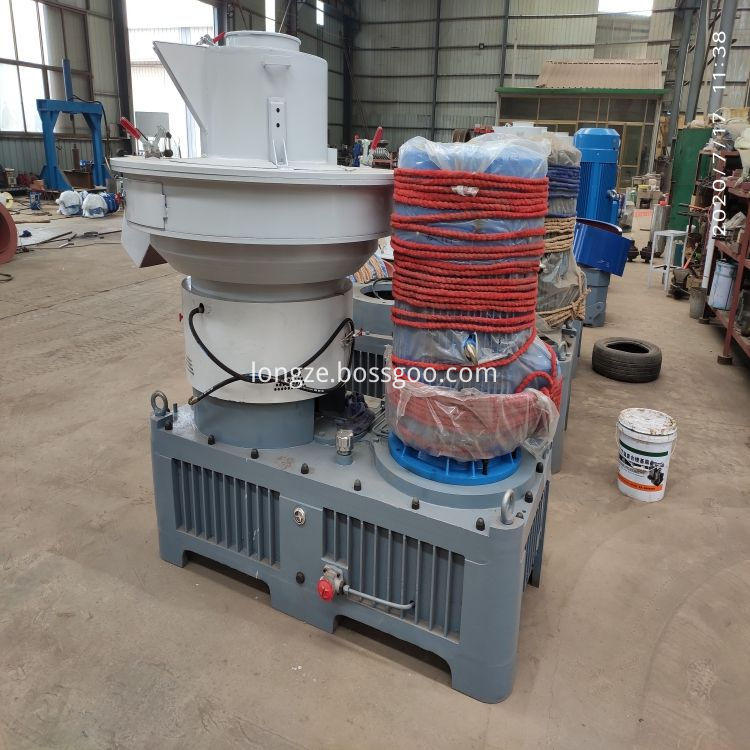

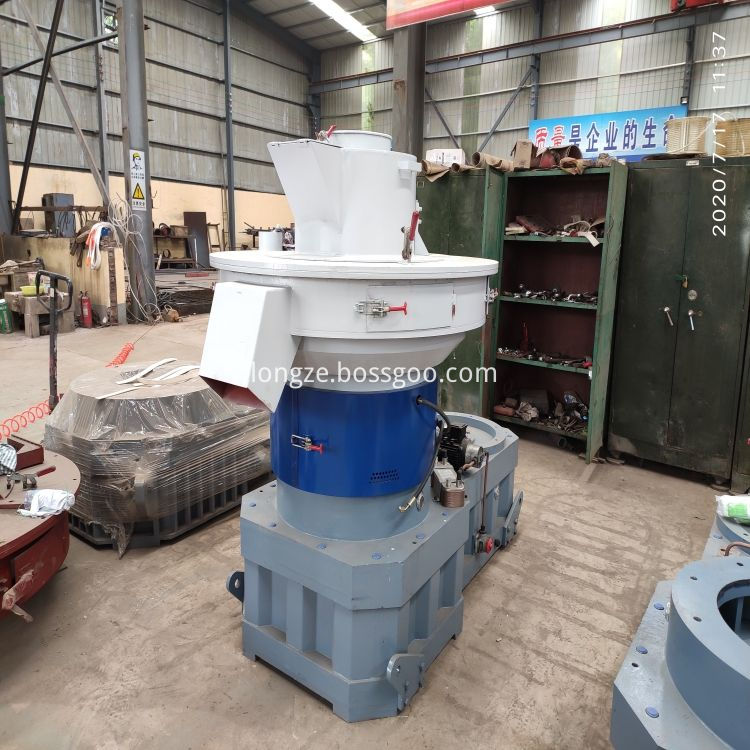

Wood pellet machine


Wood pellet machine is our main product which has adopted the essence of pellet mill in oversea market.
XGJ560 1.5t/h wood pellet machine with good price,complete wood pellet production line 2-2.5ton/hour 132kw XGJ560C Wood pellet machine/sawdust pellet machine

Technical Parameter of Wood Pellets Machine

Model

Main Power(kw)

Capacity(t/h)

Dimension(L*H*W)mm

Weight(t)

XGJ560A

90+1.5+1.5+0.37+0.55

1-1.5

2200*1300*1600

4.8

XGJ560B

110+1.5+1.5+0.37+0.55

1.5-2

2200*1300*1600

5.2

XGJ560C

132+2.2+1.5+0.37+0.75

2-2.5

2400*1400*1800

5.8

XGJ850

220+3+2.2+0.55+0.55

2.5-3.5

3800*1500*2300

12

XGJ850

250+3+2.2+0.55+1.5

3-4

3000*1830*3080

13.5

This 90kw wooden pellet working equipment is specially relevant for difficult molding materials with low adhesion fee, for example rice husk, sunflower husk, peanut shell and fruit shell; department, stem, bark and other timber waste; a ramification of crop stalks; rubber, cement, ash and other chemical substances.
It could be utilized in wood processing flora, fuel plant life, fertilizer flowers, chemical flora and many others. since it calls for less funding and yield quicker result and that no hazard, this series biomass pellet mill is an excellent dense compression molding equipment.

This wood pellet machine is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; Branch, stem, bark and other wood waste; A variety of crop stalks; Rubber, cement, ash and other chemical materials.
It can be used in wood processing plants, fuel plants, fertilizer plants, chemical plants etc. Since it requires less investment and yield quicker result and that no risk, this series wood pellet machine is an ideal dense compression molding equipment.
Machine advantages:
1. Vertical ring die wood pellet mill with vertical ring die, can feeding vertically; no arching of raw material, easy for heating dissipation.
2. Vertical ring die wood pellet mill ring die fixed, rollers rotating, materials centrifugal, evenly distributed around.
The heart parts of wood pellet machine "double layer die" has unique structural assembly and "rollers" are made of high wearable alloy materials. These two parts have the following characters: Particular design, reasonable structure, low energy, high efficiency, long life and so on.
Through many technical experts' hard work, our company has developed this typical patent product which comes forth firstly in domestic market. The new machine has filled the country blank in vertical feeding for ring die pellet mill and reached the international advanced level.
Vertical Ring Die Pellet Machine is a new biomass fuel production machinery by processing scrap from forest and agricultural waste like eucalyptus, pine ,birch, poplar, fruit and agricultural straw, bamboo.Compared with the old machine, it absorbed the essence of horizontal ring die and flat die pellet machine ,solved the insufficient pressure ,die crack problems of horizontal ring die pellet machine, and overcame the small capacity ,high failure rate of flat die pellet machine.
It adopt the large modulus hardened surface helical gearbox , main shaft reinforcement , Power output is strong , Good stability , Low failure rate ,Low production cost, so it is the first choice machinery for biomass energy industry .

Biomass wood pellet machine

The XGJ efficient centrifugal type pellet machine, also named vertical ring die pellet mill,with high pressure, can make pellets from different pressure ratio material: wood sawdust, agricultural straw, rice husk,palm fiber, oil palm trunk, bamboo, alfalfa, grass, hay or other biomass. During pelletizing, no need any additives, DIN standard can be reached easlily.

SHANDONG LONGZE MECHANICAL EQUIPMENT CO.,LTD established in 2008 . it is a company integrated enterprise with product decelopment , design, manufacturing,training and trade . Longze has 32 patents on its ownr&d products, has passed the ISO9001.EU CE, SGS certification and so on .

Longze Main product : Crusher, Hammer mill . Dryer, Pellet Mill. Cooling , bagging. pelletilizer is patent product. Longze company provide complete service from pre-sales to after-sales. Meanwhile we can provide Engineer overseas service.
If you have any interest pls contact me :+8618678773370.
